🛠️ CABINET FITTING ESSENTIAL

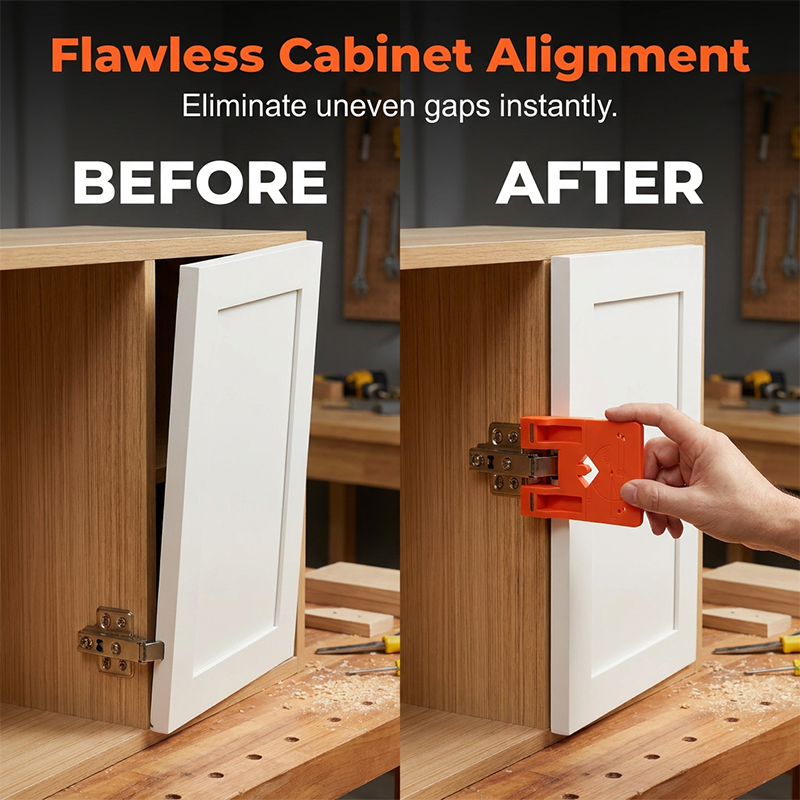

Plan And Position Cabinet Hinges With Care.

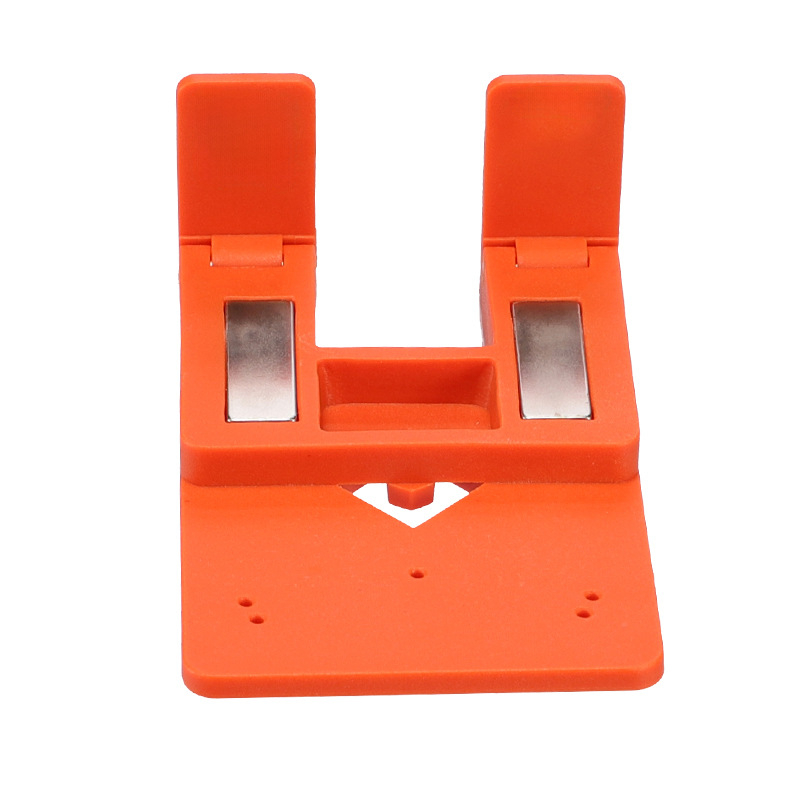

An orange plastic hinge-positioning guide designed for compatible 35mm concealed cabinet hinges and measured furniture installation.

✓ Thoughtful design📦 Product-specific options🛍️ VELAUKGOODS®️

PRODUCT HIGHLIGHTS

Details Worth Discovering

📐

35mm Hinge Cup Guide

Designed for source-listed 35mm concealed hinge cups.

🧲

Magnetic Positioning

The source describes integrated magnets that can help position the guide on compatible metal surfaces.

🛠️

Measurement References

Moulded references support careful marking of hinge locations.

🚪

Cabinet Fitting Aid

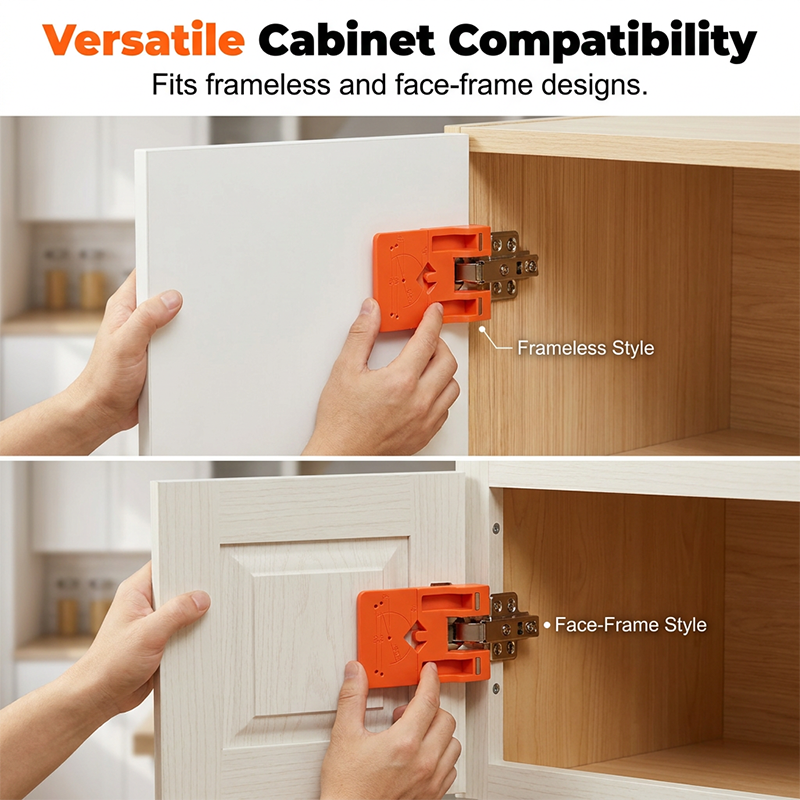

Useful when checking compatible overlay, half-overlay and inset configurations.

Measure Before Drilling
FEATURE 01

Measure Before Drilling

Check your hinge specification, door thickness and layout before marking holes.

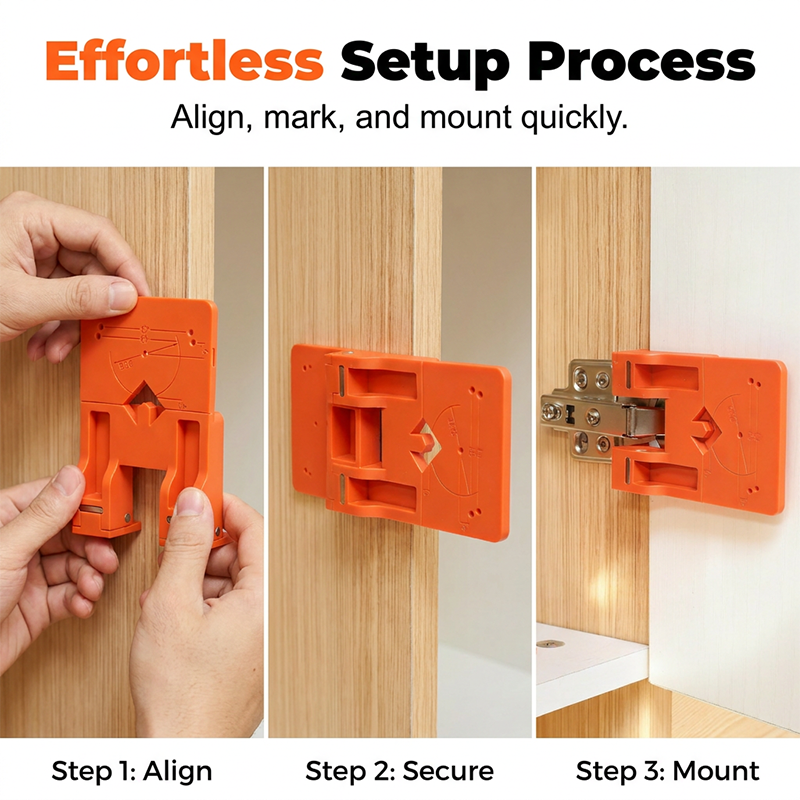

Work Towards Consistent Placement
FEATURE 02

Work Towards Consistent Placement

Use the guide as a positioning aid; a trial fit helps verify the intended spacing.

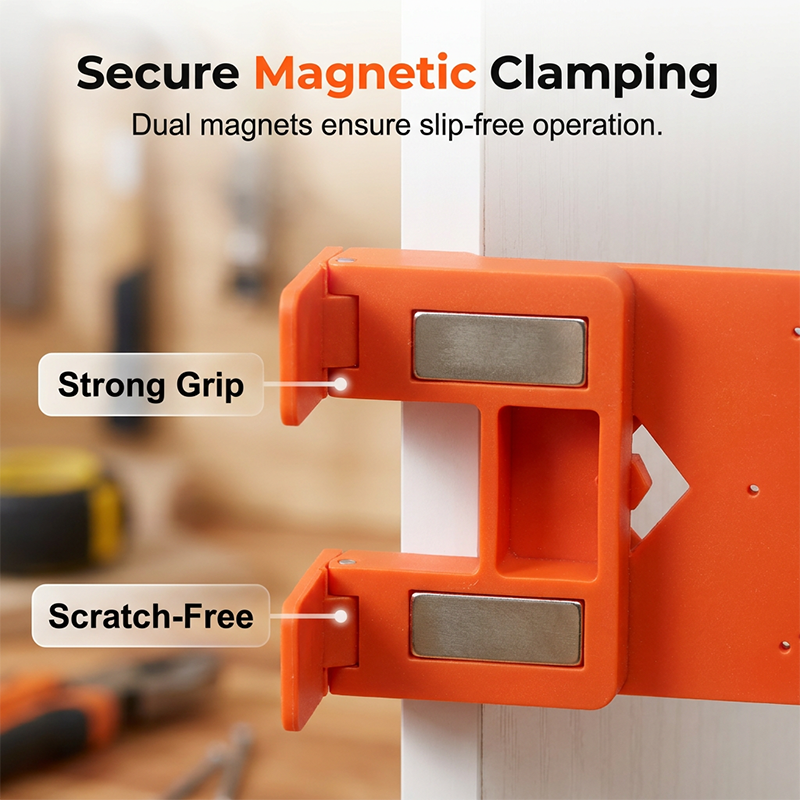

Magnetic Alignment Feature
FEATURE 03

Magnetic Alignment Feature

The source describes magnets that may aid positioning on suitable metal surfaces; do not assume they will grip wood.

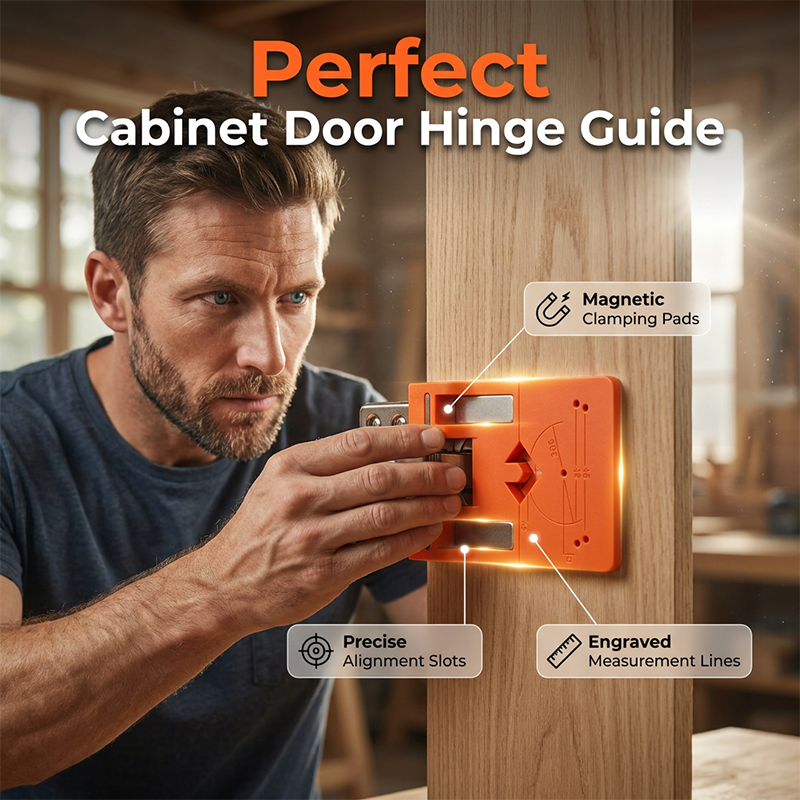

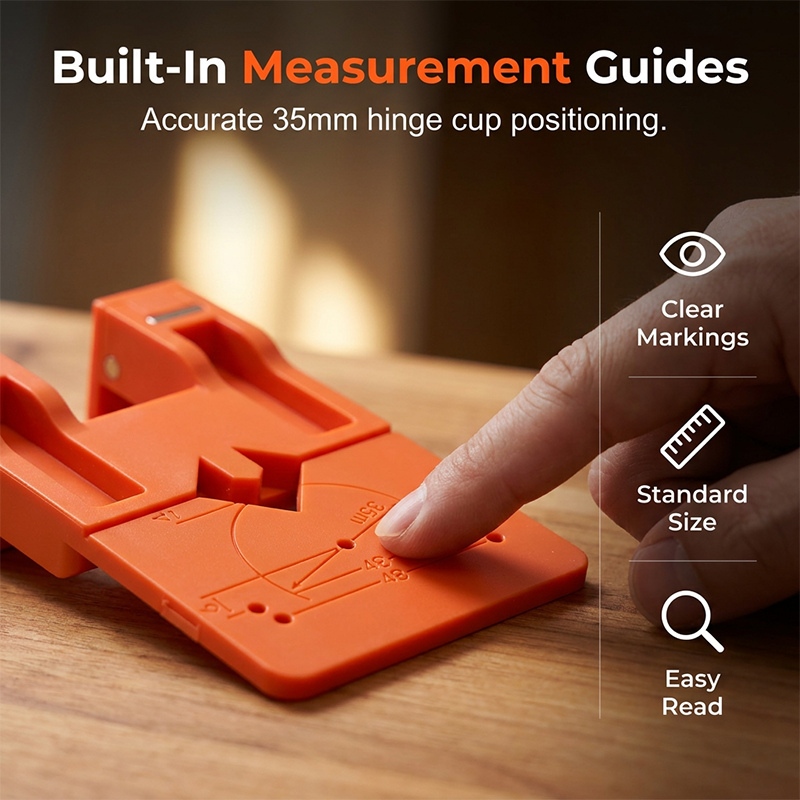

Built-In Reference Marks
FEATURE 04

Built-In Reference Marks

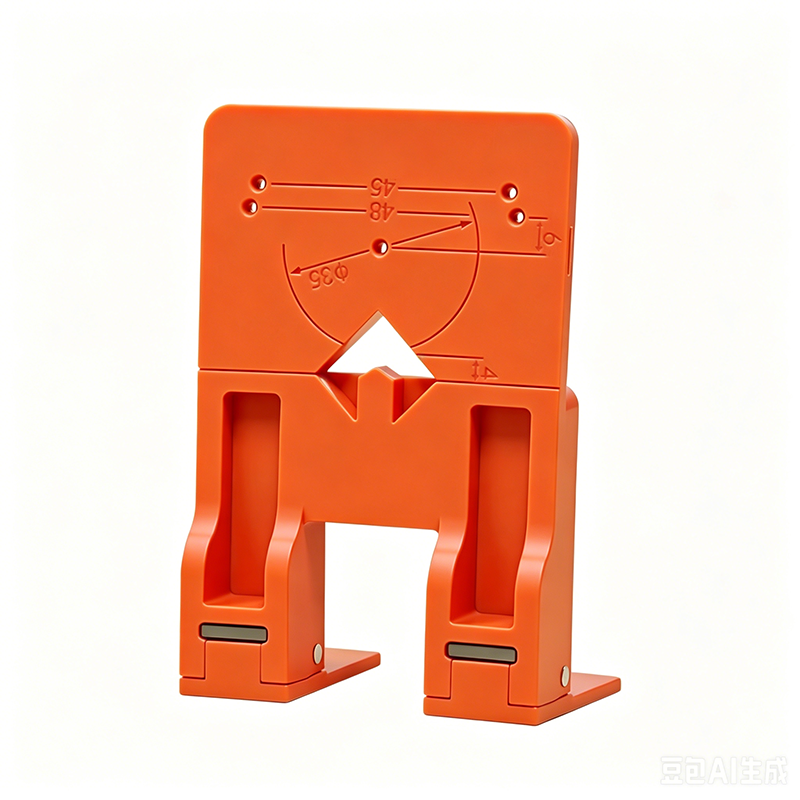

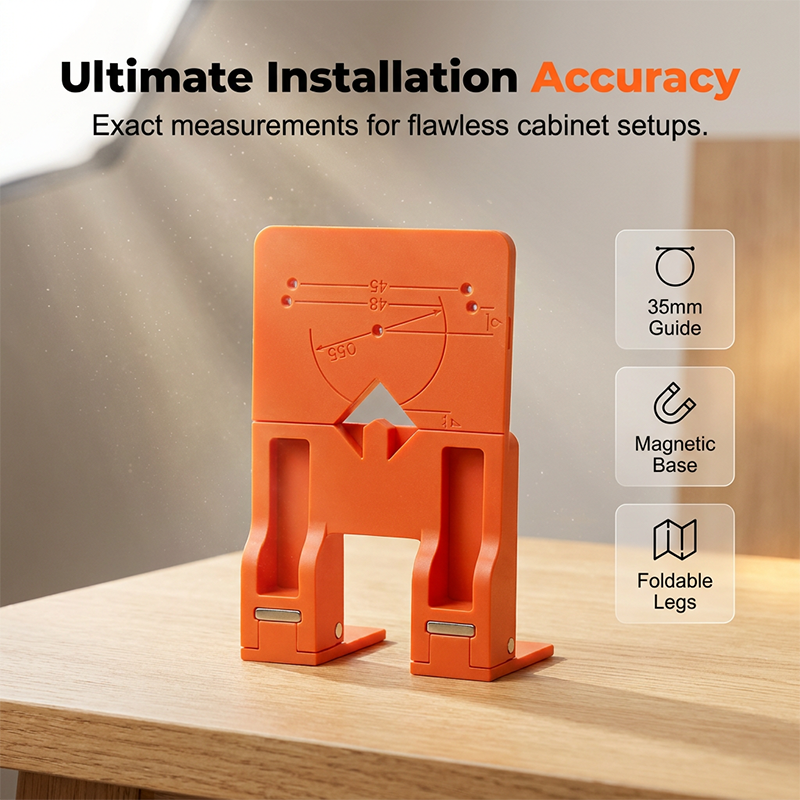

Reference measurements include a 35mm hinge cup, 4mm edge distance and 2.6mm gap, as source-listed.

For Suitable Cabinet Projects
FEATURE 05

For Suitable Cabinet Projects

Match the guide to your exact concealed hinge type; it does not include a hinge or drill bits.

📋 PRODUCT DETAILS

Specifications

Colour
Orange
Material
Plastic
Guide dimensions
100 × 66mm
Hinge cup diameter
35mm
Edge distance
4mm (source-listed)
Gap
2.6mm (source-listed)
Source-listed hinge configurations
Full overlay, half overlay, inset

📦 Package Includes

1 × Cabinet Hinge Positioning Guide. Hinges and drill bits are not included.

⚠️ Use & Care Notes

  • Check hinge cup diameter, door thickness and hardware specifications before drilling.
  • Use eye protection and follow power-tool safety instructions.
  • Test alignment and spacing on scrap material where possible.
  • Magnets only assist on compatible surfaces; maintain a secure hold during marking.
  • Clean the work surface to avoid scratches.
